Libraries & Scanning

Libraries are the foundation of Codex. This guide covers how to set up libraries, configure scanning, and organize your media collection.

Understanding Libraries

A library is a folder on your server containing your digital media files (comics, manga, ebooks). Codex scans these folders to discover and catalog your content.

Library Structure

Codex expects your media to be organized in folders:

/library/
├── Comics/
│   ├── Batman/
│   │   ├── Batman 001.cbz
│   │   ├── Batman 002.cbz
│   │   └── Batman 003.cbz
│   └── Spider-Man/
│       ├── Spider-Man v01.cbz
│       └── Spider-Man v02.cbz
├── Manga/
│   ├── One Piece/
│   │   ├── One Piece v01.cbz
│   │   └── One Piece v02.cbz
│   └── Naruto/
│       └── ...
└── Ebooks/
    ├── Fiction/
    │   ├── Novel.epub
    │   └── Another Novel.epub
    └── Non-Fiction/
        └── ...

Series Detection

Codex automatically creates series from:

1. Folder structure: Each subfolder becomes a series
2. Filename parsing: Extracts series name, volume, and number
3. Metadata: ComicInfo.xml or EPUB metadata takes priority

:::tip Flexible Organization Codex supports multiple scanning strategies for different organizational patterns. See Scanning Strategies to configure how series and books are detected. :::

Creating a Library

Via Web Interface

1. Log in as an admin
2. Click Libraries in the sidebar, then click + to add a library
3. Configure the General tab:
   • Name: Display name for the library
   • Path: Filesystem path to the folder
   • Default Reading Direction: Based on content type

4. Configure the Strategy tab for series and book detection

5. Configure Scanning options (manual or automatic with cron)

6. Configure Preprocessing rules for title cleanup during scanning

7. Configure Conditions for auto-match behavior

Via API

curl -X POST http://localhost:8080/api/v1/libraries \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "My Comics",
    "path": "/library/comics",
    "scanning_config": {
      "enabled": true,
      "cron_schedule": "0 0 * * *",
      "default_mode": "normal",
      "scan_on_start": true
    }
  }'

Via CLI (Initial Setup)

During initial setup, create a library after seeding the admin user:

# After running codex seed
# Use the API or web interface to create libraries

Scanning

Codex scans libraries to discover and catalog your media files.

Scan Modes

Mode	Description	Speed	Use Case
Normal	Only processes new or changed files	Fast	Daily scans
Deep	Re-analyzes all files	Slow	Metadata fixes

Normal Scan

• Checks file timestamps and hashes
• Only processes new or modified files
• Skips unchanged files
• Recommended for scheduled scans

Deep Scan

• Re-processes every file
• Updates all metadata
• Useful after:
  • Changing metadata in files
  • Fixing ComicInfo.xml
  • Upgrading Codex (new parser features)

Triggering Scans

Via Web Interface

1. Go to the library
2. Click the Scan button
3. Choose Normal or Deep scan

Via API

# Normal scan
curl -X POST "http://localhost:8080/api/v1/libraries/{id}/scan?mode=normal" \
  -H "Authorization: Bearer $TOKEN"

# Deep scan
curl -X POST "http://localhost:8080/api/v1/libraries/{id}/scan?mode=deep" \
  -H "Authorization: Bearer $TOKEN"

# Check scan status
curl http://localhost:8080/api/v1/libraries/{id}/scan-status \
  -H "Authorization: Bearer $TOKEN"

Automatic Scanning

Configure automatic scanning with cron schedules:

{
  "scanning_config": {
    "enabled": true,
    "cron_schedule": "0 0 * * *",
    "default_mode": "normal",
    "scan_on_start": true
  }
}

Field	Description	Example
enabled	Enable automatic scanning	true
cron_schedule	Cron expression	0 0 * * * (daily at midnight)
default_mode	Scan mode to use	normal or deep
scan_on_start	Scan when Codex starts	true

Cron Expression Examples

Expression	Schedule
0 0 * * *	Daily at midnight
0 */6 * * *	Every 6 hours
0 0 * * 0	Weekly on Sunday
0 0 1 * *	Monthly on the 1st
*/30 * * * *	Every 30 minutes

Scan Progress

Track scan progress in real-time:

Via SSE Stream

curl -H "Authorization: Bearer $TOKEN" \
  -H "Accept: text/event-stream" \
  http://localhost:8080/api/v1/scans/stream

Events include:

• Files discovered
• Files processed
• Series created
• Books added
• Errors encountered

Via Web Interface

The UI shows real-time progress with:

• Progress bar
• Current file being processed
• Statistics (new books, series, errors)

Library Settings

Path Configuration

The library path must be:

• An absolute path
• Readable by the Codex process
• For Docker: mounted as a volume

# Docker volume mount
volumes:
  - /mnt/media/comics:/library/comics:ro

:::tip Read-Only Mount Mount libraries as read-only (:ro) to prevent accidental modifications. Codex only needs read access. :::

Multiple Libraries

Create separate libraries for different content types:

Library	Path	Content
Comics	/library/comics	Western comics
Manga	/library/manga	Japanese manga
Ebooks	/library/ebooks	EPUB/PDF books

Benefits:

• Independent scan schedules
• Separate organization
• Different access permissions (future)

Series Organization

Automatic Series Detection

Codex creates series from:

1. Folder names: Each folder containing books becomes a series
2. Filename patterns: Extracts series name from common patterns

Filename Patterns

Codex recognizes common naming conventions:

Pattern	Extracted
Series Name v01.cbz	Series: "Series Name", Volume: 1
Series Name #001.cbz	Series: "Series Name", Number: 1
Series-Name-001.cbz	Series: "Series Name", Number: 1
Series Name (2024) 001.cbz	Series: "Series Name", Year: 2024, Number: 1

Metadata Priority

Metadata sources (highest to lowest priority):

1. ComicInfo.xml - In CBZ/CBR files
2. EPUB Metadata - OPF file in EPUBs
3. PDF Metadata - Document properties
4. Filename - Parsed from file name
5. Folder Name - Parent folder name

File Management

Adding New Files

1. Add files to your library folder
2. Trigger a scan (or wait for automatic scan)
3. Codex discovers and catalogs the new files

Removing Files

1. Delete files from your library folder
2. Run a scan
3. Codex marks the books as deleted (soft delete)

Soft Deletes

Deleted files are soft-deleted in the database:

• Removed from library views
• Reading progress preserved
• Can be restored if file returns
• Permanent deletion available via API

Permanent deletion (purging deleted books, or deleting the library) removes the book for good, including your current progress in it. Your reading time and finished read-throughs are kept and still count in your statistics, under a Removed from library line; see Reading Progress.

Moving Files

If you move files:

1. Codex detects the file is missing (soft delete)
2. Codex discovers the file in new location (new entry)
3. File hash matching can detect this as a move (preserves metadata)

Duplicate Detection

Codex can detect duplicate books (by file hash) and duplicate series (by external ID or normalized title) from a single page.

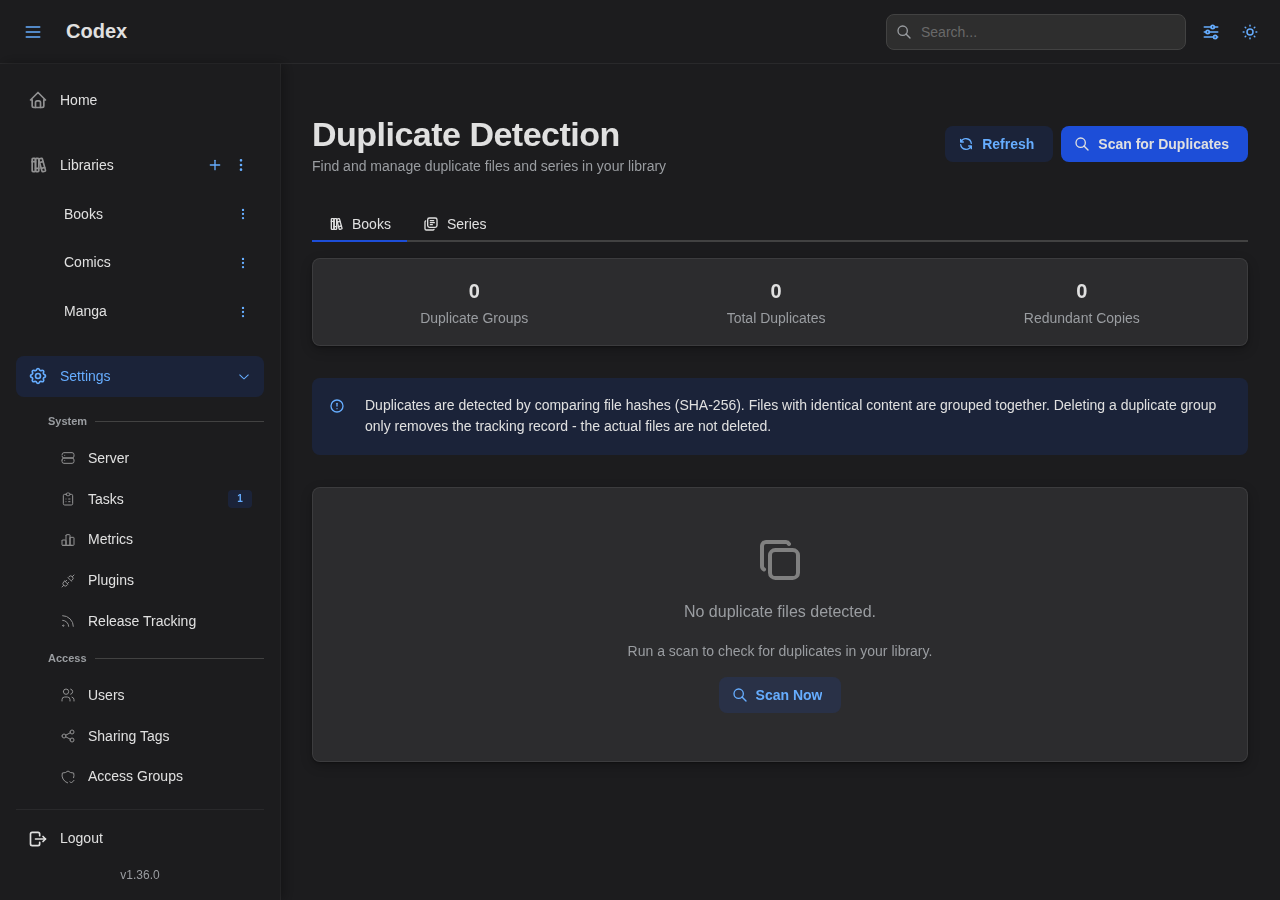

Enable Duplicate Scanning

Via the web interface, go to Settings > Duplicates and click Scan for Duplicates. A single scan runs both the book and series detection passes.

Or via the API:

curl -X POST http://localhost:8080/api/v1/duplicates/scan \
  -H "Authorization: Bearer $TOKEN"

Book Duplicates

Books are compared by their file hash (SHA-256). Two books with the same content, regardless of filename, library, or series, are grouped together.

curl http://localhost:8080/api/v1/duplicates \
  -H "Authorization: Bearer $TOKEN"

Series Duplicates

Series are matched by two independent signals, shown on the Series tab:

• External ID (High confidence). Two series resolve to the same upstream record after metadata fetch (e.g. both point at plugin:mangabaka:12345). This match is global: the same external ID in two different libraries is still flagged.
• Normalized title (Possible match). Two series in the same library share the same normalized title (e.g. naruto). This match is scoped to one library so that a comic and a manga edition in separate libraries are not treated as duplicates.

Each group shows the matched series with their library, book count, and last-updated date so you can decide which entry to keep.

# All series duplicate groups
curl http://localhost:8080/api/v1/duplicates/series \
  -H "Authorization: Bearer $TOKEN"

# Filter by signal: external_id or title
curl "http://localhost:8080/api/v1/duplicates/series?matchType=external_id" \
  -H "Authorization: Bearer $TOKEN"

Deleting a Group

Deleting a duplicate group from the UI or API only removes the tracking record. The underlying books and series are never touched. If the duplicates still exist on disk, the next scan recreates the group.

# Remove a book duplicate group
curl -X DELETE http://localhost:8080/api/v1/duplicates/{id} \
  -H "Authorization: Bearer $TOKEN"

# Remove a series duplicate group
curl -X DELETE http://localhost:8080/api/v1/duplicates/series/{id} \
  -H "Authorization: Bearer $TOKEN"

When to Rescan

The scan is triggered manually. Rerun it after:

• A library scan that ingested new series.
• A metadata fetch that assigned or changed external IDs (this can promote a title-only match into a higher-confidence external ID match).
• Renaming a series, which changes its normalized title.

Troubleshooting

Scan Not Finding Files

1. Check path: Verify the library path exists
2. Check permissions: Ensure Codex can read the directory
3. Check file types: Only supported formats are scanned
4. Check logs: Look for errors in Codex logs

# Docker
docker compose logs codex | grep -i "scan\|error"

# Systemd
journalctl -u codex | grep -i "scan\|error"

Series Not Grouped Correctly

1. Check folder structure: Books in same folder = same series
2. Check filenames: Consistent naming helps parsing
3. Add ComicInfo.xml: Explicit metadata overrides parsing
4. Re-scan with deep mode: Forces metadata re-extraction

Metadata Not Updating

1. Run deep scan: Normal scan skips unchanged files
2. Check ComicInfo.xml: Ensure it's valid XML
3. Check file timestamps: Touch files to mark as changed

Scan Taking Too Long

1. Check concurrent scans setting: Lower if system is overloaded
2. Use normal mode: Skip unchanged files
3. Check disk I/O: Slow storage affects scanning
4. Check worker count: Adjust based on CPU cores

Best Practices

Folder Organization

/library/
├── Comics/           # One library for western comics
│   └── [Series]/     # Each series in its own folder
│       └── files...
├── Manga/           # Separate library for manga
│   └── [Series]/
│       └── files...
└── Ebooks/          # Separate library for books
    └── [Category]/
        └── files...

File Naming

Consistent naming helps Codex parse metadata:

# Good
Batman 001.cbz
Batman 002.cbz
One Piece v01.cbz
One Piece v02.cbz

# Less ideal (but works)
batman_issue_1.cbz
onepiece-vol-1-chapter-1-10.cbz

ComicInfo.xml

For best results, include ComicInfo.xml in your comics:

<?xml version="1.0"?>
<ComicInfo>
  <Title>Issue Title</Title>
  <Series>Batman</Series>
  <Number>1</Number>
  <Writer>Author Name</Writer>
  <Publisher>DC Comics</Publisher>
  <Genre>Superhero</Genre>
  <Summary>Issue description...</Summary>
</ComicInfo>

Scan Schedules

• Small libraries (< 1000 books): Daily or on-demand
• Medium libraries (1000-10000 books): Daily at off-peak hours
• Large libraries (> 10000 books): Weekly or on-demand

Next Steps

• Scanning strategies - Configure series and book detection
• Supported formats
• Configure OPDS
• API documentation
